Revolutionary Full Colour Night Vison

RackMaster

Nasty-Dirty-Canuck
SOF Support
Joined
Feb 8, 2007
Messages
11,815
Location
Land of Swine and Maple Syrup
This is huge and a massive game changer.

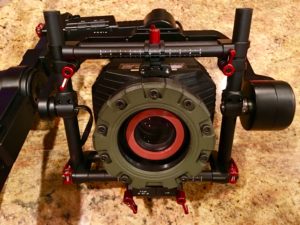

This picture is night vision.


This Company's Full Color Nightvision is Going to Revolutionize Combat for US Forces [VIDEO]

Seems like some phenomenal commercial applications as well for security, nature photography, etc. In addition to the wearable applications I'd be really interested to see it incorporated into unattended ground sensors and other ground surveillance. In MI we always bias towards the airborne sensors but the things you can do from the ground - especially on a cost comparison basis - are pretty substantial.

How much does it weigh? Does it mount to a helmet? How many extra batteries do I have to carry? Are they standard batteries, or something special? How durable is it against dust, cold, heat, bouncing around in a ruck/blowout pouch? Will it still pick up my IR sparkle?

Definitely a game changer, but I hope the answers to those questions are favorable ones. Wouldn't be the first piece of game changing kit that ended up not being all that great in the field.

How much does it weigh? Does it mount to a helmet? How many extra batteries do I have to carry? Are they standard batteries, or something special? How durable is it against dust, cold, heat, bouncing around in a ruck/blowout pouch? Will it still pick up my IR sparkle?

Definitely a game changer, but I hope the answers to those questions are favorable ones. Wouldn't be the first piece of game changing kit that ended up not being all that great in the field.

X27 COLOR NIGHT VISION IMAGER GYRO STABILIZED FOR USE ON UAV, DRONES, UGV, UAS AND SUAS

Preliminary Technical Specifications:

Sensor & Parameters: Maintenance free, no moving parts, Solid State non intensified BSTFA Extreme low light color FPA w/column amplification.
– Large Format, large pixel pitch architecture w/5,000,000 equivalent ISO
– Backside Illuminated for light utilization efficiency
– Extremely High Dynamic Range, Photoconductive & photoresponse gain
– Very high ISO w/Extremely Low read Noise
– Auto Black Level Calibration
– Auto Exposure w/excellent color fidelity
– Excellent image uniformity
– Auto hot pixel correction

Frame Rate: 60 FPS / optional 120 FPS

Day Night Mode: Auto Imaging/Auto Switching

Bright light/Blooming compensation: Automatic

Photodetector Array Size: 10 Megapixel / HD 4320 x 2432

Temperature Range: -30C to +80C

Output: HD
– Output Type: HD-SDI / HDMI

Wavelength: 390-1220 Um broadband Extreme High Sensitivity

IR Response: Yes

Power: 12V

Lens: 32 mm Standard (included) / 22mm, 37mm, 60mm, 88mm, 152mm ~ smaller and Larger mixed Aperture Focal Lengths in development

Housing: Sealed / All weather

Image Stabilization: Optional 3 stage

Ultra low light color night vision camera imager for goggles, scopes, sights
